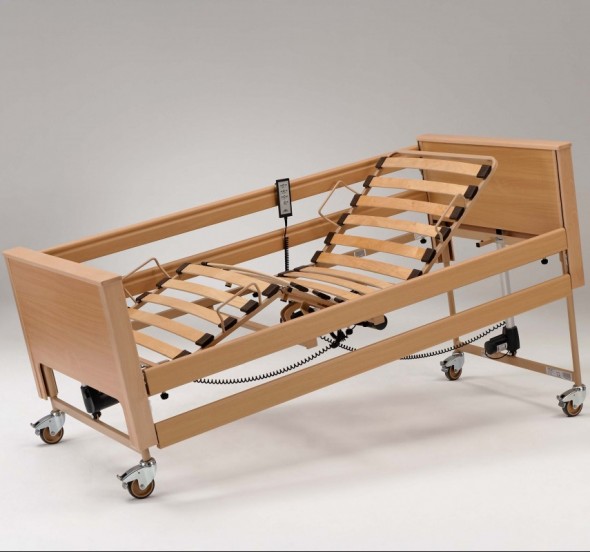

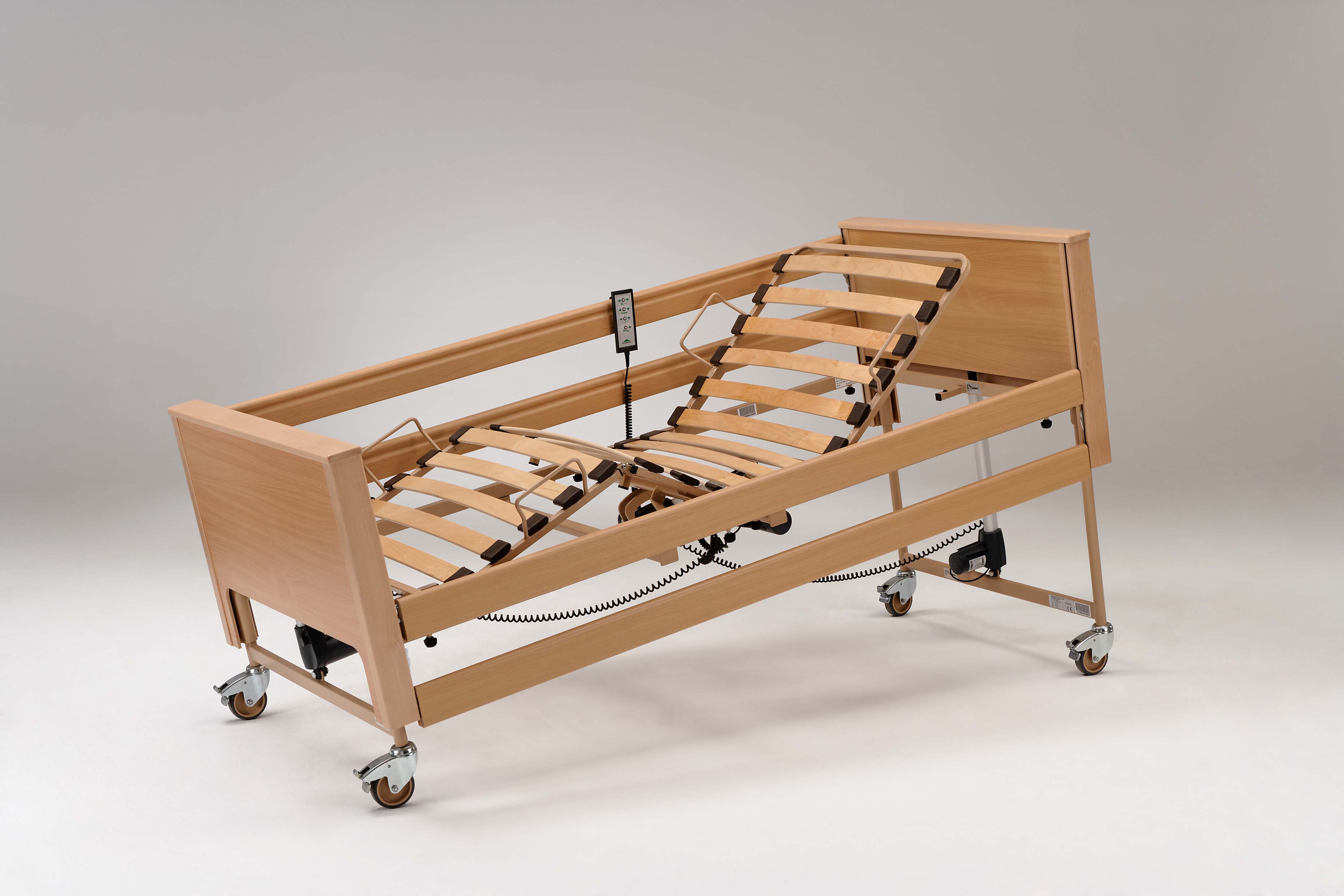

Orthopedic bed. ARMINIA III

BURMEIER . ARMINIA III Beds and detachable bed boards/mattress support platforms with powered adjustment

Product Details
The Arminia III care bed is extremely sturdily constructed to stand up to the rigours of the daily care routine. Its high quality make this a particularly durable and low-maintenance care bed that significantly reduces follow-on costs. The wooden surrounds lend the bed a homely ambience. People in need of care will feel very much at ease in the Arminia III 24 volt bed. This bed offers exceptional value for money.
Even in its basic version, the Arminia III 24 volt provides great support for care staff.

The key points at a glance

Safety side protective height approx. 37 cm
Compatible with mattresses and anti-decubitus systems up to a maximum height of 15 cm
Extremely sturdy safety side construction
High-quality, rugged Tente castors
Handset with selective locking function

Specs
Safe Load: (Max Patient Weight) 185kg (145kg)
Overall Length: approx. 2180mm
Overall Width: approx. 1010mm
High ⁄ Low: 400 to 800 mm, range = 400 mm
Mattress Base Size: 900mm x 2000mm
Castors: 4 x 100mm individually locking.
Lift Operation: 24V Fully Electric drive system
Backrest: 0° – 70°
Knee break: 0° – 35°
Tilt to the foot end: approx. 10°
Side Rails: Continuous Side Rail, both sides
Finish: The bed is mostly constructed out of steel sections, their surfaces have been polyester–powdercoated, or with a metallic coating of zinc and chrome. The end boards, the side rail beams and the spring wood slats consist of wood and derived timber products whose surface has been sealed.
